New Vertical Pressure Leaf Filter 1000kg for Oil Industry

New Vertical Pressure Leaf Filter 1000kg for Oil Industry
New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry New Vertical Pressure Leaf Filter 1000kg for Oil Industry

Grote Afbeelding :  New Vertical Pressure Leaf Filter 1000kg for Oil Industry

Productdetails:
Plaats van herkomst: Jiangsu, China
Merknaam: Juneng
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: $7,760-8,000 / set
Contact

New Vertical Pressure Leaf Filter 1000kg for Oil Industry

beschrijving
Gewicht: 1000 kg Filtratiegebied: 2-70 ㎡
Het volume van de filtercake: 30-1400 L Werkdruk: 0,1-0,4 MPA
Maximale druk: 0,5 MPa Werktemperatuur: ≤ 150 °C
Machinevolume: 120-7200 L Behandelingscapaciteit olie: 0,4-19 m³/h
Hars voor behandelingscapaciteit: 1-68 m³/h Behandelingscapaciteit drank: 0,1-78 m³/h
Pakketmaat: 123*456*789 cm Pakketgewicht: 1.2 T
Materiaal: Roestvrij staal Bedrijfstype: volledig gesloten
Afvoer van residuen: Pneumatische klep
Markeren:

vertical pressure leaf filter 1000kg

,

oil industry pressure leaf filter

,

pressure leaf filter with warranty

Matte Sandblasting Vertical Pressure Leaf Filter for Oil Industry
Product Attributes
Attribute Value
Condition New
Weight (kg) 1000
Warranty 1 Year
Product Description

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

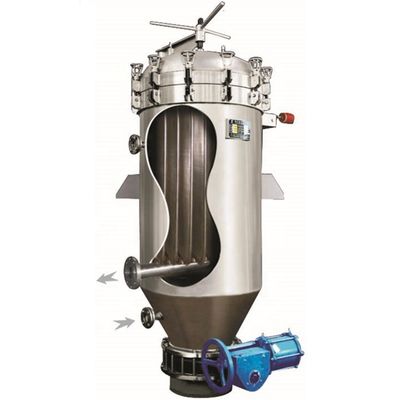

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

New Vertical Pressure Leaf Filter 1000kg for Oil Industry 0 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 1
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (℃) Machine volume (L)
Oil Resin Beverage Rated pressure Max pressure
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 0.5 ≤150 250
NYB-7 7 105 1-1.8 3-6 4-7 0.5 ≤150 420
NYB-10 10 150 1.6-3 5-8 6-9 0.5 ≤150 800
NYB-12 12 240 2-4 6-9 8-11 0.5 ≤150 1000
NYB-15 15 300 3-5 7-12 10-13 0.5 ≤150 1300
NYB-20 20 400 4-6 9-15 12-17 0.5 ≤150 1680
NYB-25 25 500 5-7 12-19 16-21 0.5 ≤150 1900
NYB-30 30 600 6-8 14-23 19-25 0.5 ≤150 2300
NYB-36 36 720 7-9 16-27 23-31 0.5 ≤150 2650
NYB-40 40 800 8-11 21-34 30-38 0.5 ≤150 2900
NYB-45 45 900 9-13 24-34 36-44 0.5 ≤150 3200
NYB-52 52 1040 10-15 27-45 42-51 0.5 ≤150 3800
NYB-60 60 1200 11-17 30-52 48-60 0.5 ≤150 4500
NYB-70 70 1400 12-19 36-60 56-68 0.5 ≤150 5800
NYB-80 80 1600 13-21 40-68 64-78 0.5 ≤150 7200
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 2 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 3 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 4
Main Features
  • With no cloth and filter paper, it greatly reduces filtration costs
  • The fully closed operation is environmentally friendly without material loss
  • Vibration residue falling greatly reduces labor intensity and realizes continuous operation
  • Residue discharging through the pneumatic valve greatly reduces labor intensity of workers
  • The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 5 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 6
Related Products
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 7
Milk Separator
91.8% Response Rate
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 8
Decanter Centrifuge
91.8% Response Rate
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 9
Multi-function Filter
91.8% Response Rate
Certifications
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 10
Our Service
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 11 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 12
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • View our Factory
After-Sales Service
  • Training how to install the machine, training how to use the machine
  • Engineers available to service machinery overseas
Packing & Delivery
New Vertical Pressure Leaf Filter 1000kg for Oil Industry 13
Packaging Details

Size: 123 (L) * 456 (W) * 789 (D)

Weight: 1.2 T

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Exhibitions We Attended

We have attended various exhibitions during these years, such as Canton Fair.

New Vertical Pressure Leaf Filter 1000kg for Oil Industry 14 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 15 New Vertical Pressure Leaf Filter 1000kg for Oil Industry 16
