Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area

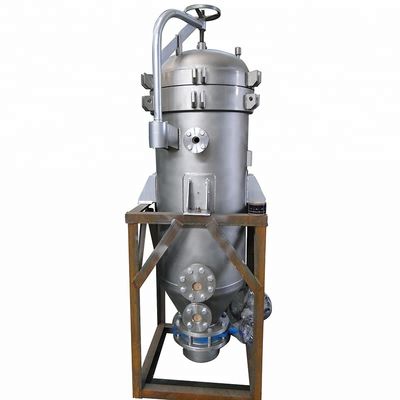

Grote Afbeelding :  Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area

Productdetails:
Plaats van herkomst: Jiangsu, China
Merknaam: Juneng
Certificering: BV,ISO,CE,ASME U
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: $12,500-13,500 / set
Contact

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area

beschrijving
Automatisch cijfer: Semi-automatisch Spanning: aangepast
Stroom: 1500 W Gewicht: 1000 kg
Afmetingen: 1610*1250*2500 mm Filtratiegebied: 12 m²
Materiaal: Koolstofstaal, roestvrij staal Ontwerptemperatuur: 100-150 ℃
Ontwerpdruk: 0,6 MPa Inlaatgrootte: DN50
Capaciteit: 2-4 t/h Het volume van de filtercake: 240 liter
Werkdruk: 0,5 MPa Werktemperatuur: ≤ 150 °C
Machinevolume: 1000 L
Markeren:

semi-automatic oil bleaching filter

,

pressure leaf filter 12m2

,

oil bleaching pressure filter

New Station Oil Bleaching Vertical Leaf Pressure Filter Press
Product Specifications
Attribute Value
Condition New
Automatic Grade Semi-automatic
Voltage Customized
Power 1500W
Weight 1000 kg
Dimensions (L×W×H) 1610×1250×2500 mm
Warranty 1 Year
After-sales Service Field maintenance and repair service
Function Oil Filter
Structure Leaf Filter
Capacity 2-4T/H
Filtration Area 12m²
Material Carbon steel, Stainless steel
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Inlet Size DN50
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Product Description

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe for convenient dismantling and cleaning.

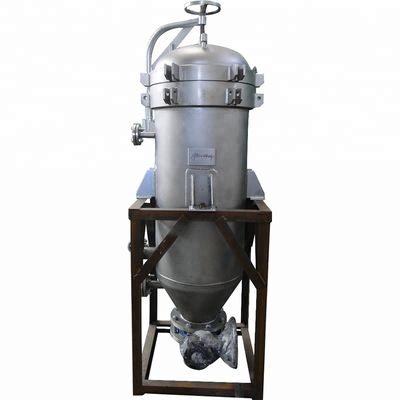

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 0 Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 1
Technical Specifications
Model Filtration Area (m²) Filter Cake Volume (L) Treatment Capacity (Oil) Work Pressure (Mpa) Work Temperature (℃) Machine Volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB-12 12 240 2-4 0.1-0.4 ≤150 1000
Key Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully enclosed operation is environmentally friendly with no material loss
  • Vibration residue removal reduces labor intensity and enables continuous operation
  • Pneumatic valve residue discharge minimizes worker labor intensity
  • Can completely replace plate and frame filters with activated carbon or bleaching filtration

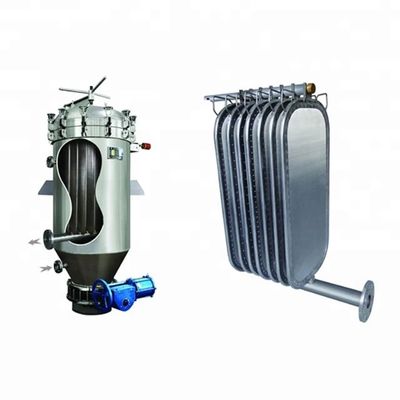

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 2
Filter Leaf Specifications (NYB-12 Example)
  • 11 filter leaves provide 12 sqm filtration area
  • Leaves constructed with 1.8mm 316L material heavy box channel
  • Topside reinforcement with one vibrator fork per leaf (SS 316 material)
  • Bottom outlet nozzle with Viton rubber "O"ring seal

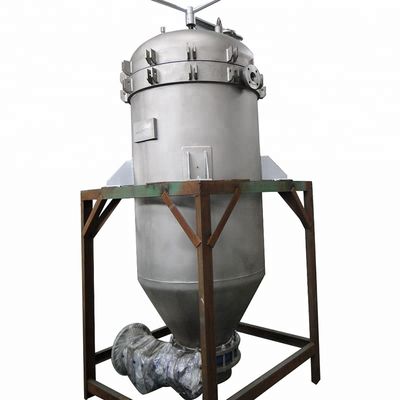

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 3
Butterfly Valve (NYB-12 Example)
  • DN 400 butterfly valve (WAFER TYPE) for dry cake discharge
  • High quality butterfly valve with NH-S seat material (up to 150°C)
  • Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Our Services
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory visit arrangements
After-Sales Service
  • Installation and operation training
  • Overseas engineer support
  • Prompt response within 2 hours for reported issues
  • Free installation guidance and operator training (domestic China)

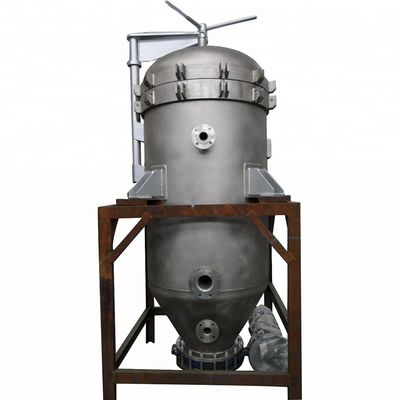

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 4
Packaging & Delivery
Packaging Details
Size 123 (L) × 456 (W) × 789 (D)
Weight 1.2 T
Packaging Details Standard wooden box packaging. European shipments include fumigation. Custom packaging available for special requirements.

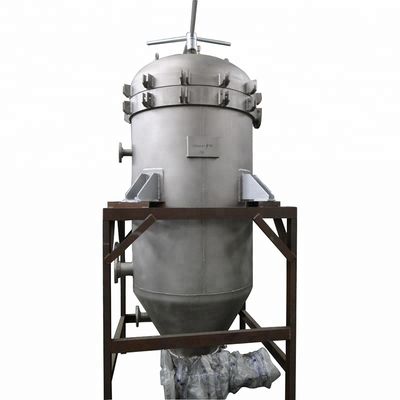

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 5
About Juneng Group

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we hold CE certificates, ASME U certificate and ISO 9001 certification.

Our products are sold throughout China and exported to USA, Germany, Korea, Japan, and other countries. We welcome OEM and ODM orders, with customer service available to discuss your specific requirements.

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area 6
Quality Assurance
  • Factory audit available prior to purchase
  • Material inspection during manufacturing process
  • Strict compliance with technical requirements
