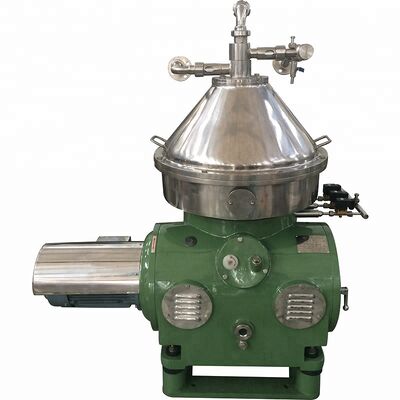

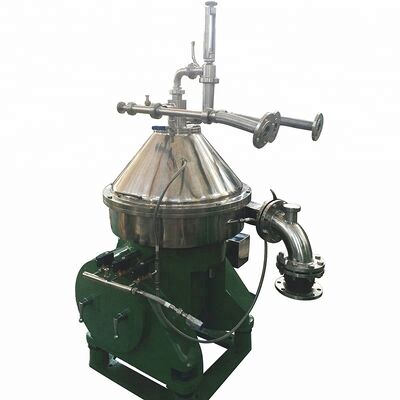

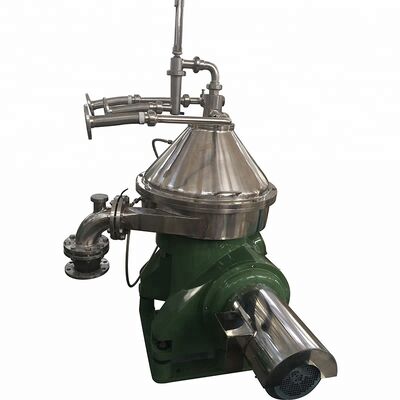

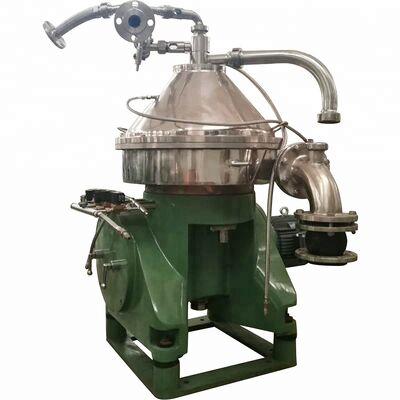

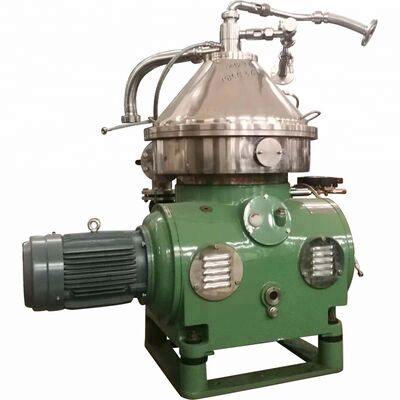

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Certificaat
CHINA JUNENG MACHINERY (CHINA) CO., LTD. certificaten
CHINA JUNENG MACHINERY (CHINA) CO., LTD. certificaten
Klantenoverzichten
Dan van kedua-Duabunyi pemisahan getaran adalah o.k., berjalan kadar aliran 11㎥/h

—— Hossain

Het materiaal loopt normaal, is het stroomtarief o.k., dankt de ingenieur.

—— prakash

* De trainer stelt de machine in werking. Hij deed een volledig onderhoud. * Geen Kwestie * De trainer deed een goed werk. Dank.

—— Amro Alropshy

이미 확인 된 모든 구분 기호입니다. 아무런 문제가 없습니다.

—— Kim

Масло не проходит через линию промывки, Качество масла не плохое.

—— Alexander

Ik ben online Chatten Nu

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Grote Afbeelding :  Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Productdetails:
Plaats van herkomst: Jiangsu, China
Merknaam: JUNENG
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: CN¥175,070-182,072.80

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

beschrijving
Producttype: Schijfstapel Kerncomponenten: Plc, lager, motor
Spanning: 110V, 380V, 415V, 460V Stroom: 7500 W
Dimensie: 1500*1150*1500 mm Capaciteit: 1200-2500 L/U
Gewicht: 1280 Kg plaatsende snelheid: 7020 tpm
Materiaal: SS304 Materiaal voor trommels: 2205
Functie: Vloeistof Vloeistof Vaste stof Centrifugeer Operatie: Continu
Handelswijze: SKF-Lager Inlaatdruk: 0,05 MPa
Uitlaatdruk: 0.1-0.3 MPa
Markeren:

7020 rpm Biodiesel Oil Separator

,

SS304 Material High Speed Separator Centrifuge

,

1200-2500 l/h Capacity Disc Oil Separator

Biodiesel Oil Solid-liquid Separator High Speed Separator Centrifuge
Biodiesel Industrial Oil Separator Glycerin Separator

Biodiesel is a clean, renewable energy source and an excellent substitute for petroleum diesel. Produced through ester exchange processes using raw materials such as plant oil crops, wild plants, engineering microalgae, animal fats, and food waste oil, biodiesel represents a sustainable "green energy" solution.

The development of biodiesel holds significant strategic importance for sustainable economic growth, promoting alternative energy sources, reducing environmental pressure, and controlling urban air pollution.

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 0 Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 1
Product Competitive Advantages
  • High speed operation with stable performance
  • Fully closed inlet and outlet system
  • Low noise levels during operation
  • Excellent separation efficiency
  • High oil recovery rate
  • Fully automatic control system
  • Easy to operate and maintain
Product Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHSY470 4000-7000 0.05 0.1-0.3 15 1880 1800×1200×1800
DHSY550 6000-15000 0.05 0.1-0.3 22 2200 1850×1550×2050
Product Applications

Successful applications include:

  • Separation of methyl ester, glycerin, catalyst, de-soap, and methanol
  • Methyl washing processes
  • Extraction of fatty acids
  • Glycerol desalination
Company Introduction

Juneng Group is a large-scale manufacturer of industrial products in China with subsidiaries including Juneng Machinery (China) Co., Ltd and Jiangsu Juneng Machinery Co., Ltd. The group specializes in research, development, and manufacturing of various industrial filters, separators, and pumps.

As an industry leader serving the fats, chemical, pharmaceutical, beverage, and petrochemical industries, Juneng is recognized as one of the world's prominent producers and suppliers.

The company operates three production bases totaling 280,000 square meters in Nanjing City and Yixing City of Jiangsu province. With a permanent workforce of over 1,300 people, the production facilities are equipped with more than 1,500 units of advanced production equipment and test instrumentation.

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 2 Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 3
Exhibition
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 4
Certifications
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 5
Packing & Delivery
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 6 Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 7
Our Services
Pre-sale Services
  • Prompt response to inquiries
  • Competitive pricing compared to other suppliers
  • Factory visits available upon request
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 8
After-sales Services
  • Regular follow-up and maintenance tracking
  • One-year warranty to ensure optimal machine performance
  • Comprehensive spare parts inventory available
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 9 Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 10
