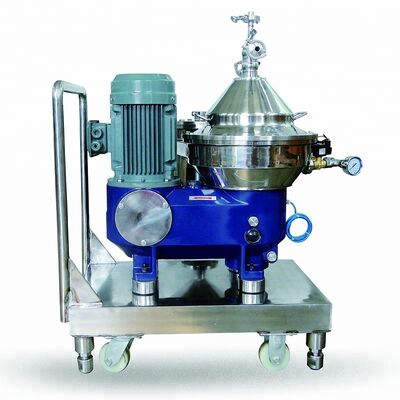

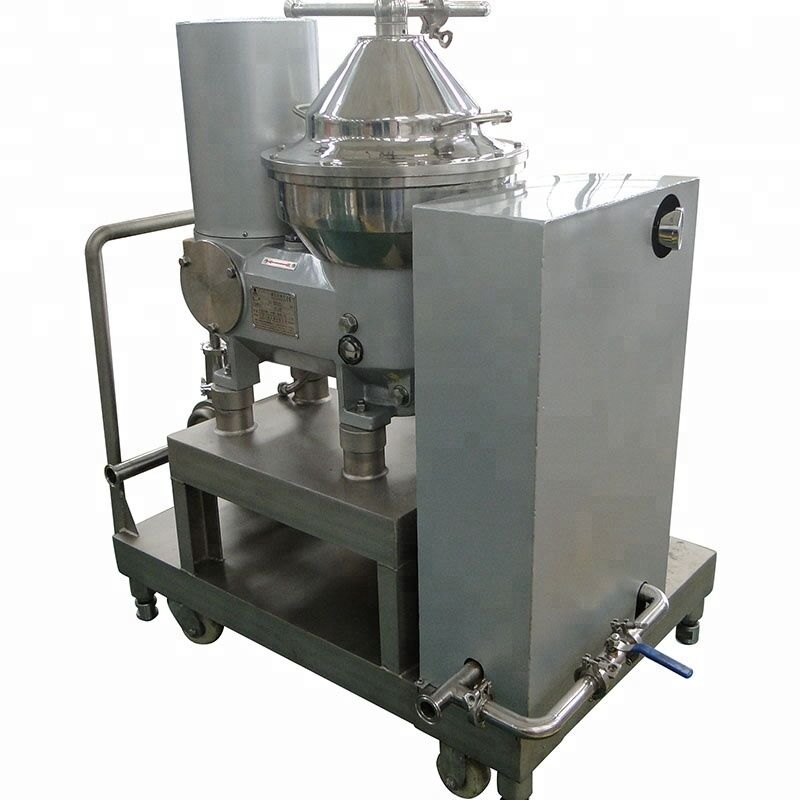

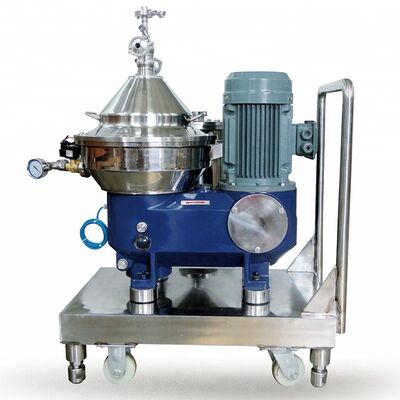

Disc Electric 3 Phase Milk Water Separator with PLC Control
Self-cleaning solid bowl milk cream separator machine designed for efficient dairy processing with advanced PLC automation.
Separator Application
Our centrifugal separator features specialized design for centripetal pump and inlet/outlet ports, creating a gentle separation environment that preserves active ingredients while maintaining nutritional value, freshness, and original flavor.
Primarily used in milk processing industry for continuous separation of cream and defatted milk from pure milk, while removing impurities and sediments. Enables milk standardization based on fat content and separation of extremely small solid particles (less than 1mm) from liquid phase.
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Working Principle - Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation. Two-phase separation removes suspended solids from liquid or separates two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and solid phase.
Working Principle - Dairy Clarification
Clarification involves two-phase separation where materials feed into the machine's bowl interior. Under strong centrifugal force, impurities are removed from raw material to produce clean milk.
Separator Advantages
- Continuous feeding operation
- High separation factor efficiency
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High operational efficiency
- Lower energy consumption
- Gentle feeding and discharging through optimized inlet/outlet design
Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Equipment Images
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion from separated materials while meeting strict food hygiene requirements.
The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Vertical and Horizontal Shaft Assembly
All components manufactured from stainless steel with high-quality machining and precision assembly for reliable high-speed operation.
| Material |
Super stainless steel |
| Function |
High-speed operation |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |
PLC Control System
Equipped with automatic control cabinet featuring industrial computer and auto overload protector. Highly automated system with excellent process adaptability and easy adjustment capabilities, significantly reducing operator workload.
Quality Assurance
Our company maintains first-class laboratory facilities for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. Advanced instrumentation and rigorous quality control ensure every product component is stable and reliable.
Packaging & Delivery
| Size |
1800(L)×1800(W)×1800(H) - varies by model |
| Weight |
1000kg-3000kg |
| Packaging Details |
Standard wooden box packaging. European exports include fumigated wooden boxes. Container-optimized packaging available with PE film or custom packaging per customer requirements. |
Company Overview
Juneng focuses on international technical collaboration and commercial exchange, learning from advanced management systems and expertise from USA, Canada, Germany, Russia, and Southeast Asia countries.
Customer Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing arrangements
After-Sales Service
- Machine installation training
- Machine operation training
- Overseas engineer service availability
Certifications & Honors
Frequently Asked Questions
Q: How can we visit your factory?
A: International visitors - fly to Shanghai airport, we provide airport pickup. Domestic visitors - air or train to Wuxi station, we provide railway station pickup.
Q: How do you ensure product quality?
A: State-owned enterprise with 30+ years experience, strict operational policies, advanced processing machines, licensed operators, international brand components, comprehensive testing throughout production.
Q: What payment methods do you accept?
A: Mainly T/T and L/C at sight, with most payment methods accepted.
Q: What is the warranty period?
A: 12 months warranty after commissioning.
Q: How can I trust your company?
A: 10+ years on Alibaba.com, golden supplier status, CE, ISO9001 certifications, Alibaba onsite check certification, Trade Assurance Limit of US$42,000+.
Q: What are shipment terms and delivery time?
A: Standard delivery 20 days, customized machines 30 days, depending on order quantity.
Q: Do you offer discounts?
A: We provide competitive pricing with excellent service quality.
