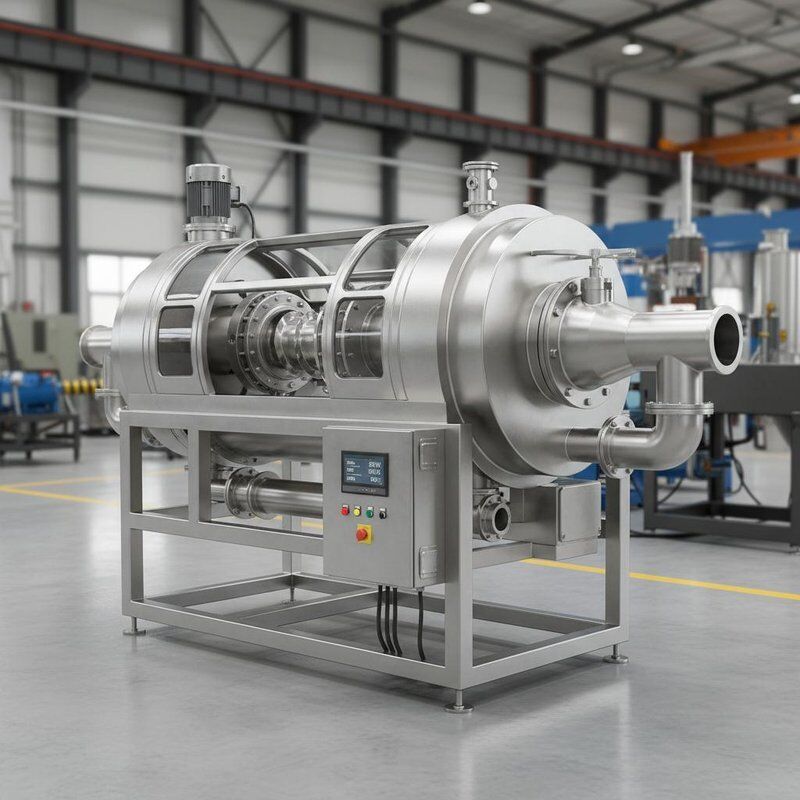

Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering

Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering
Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering

Grote Afbeelding :  Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering

Productdetails:
Plaats van herkomst: JIANGSU Nanjing
Merknaam: Juneng
Certificering: ISO9001
Modelnummer: LW450
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: USD 52000 / set
Verpakking Details: 1. Behandeld met plastic film om stof en vochtigheids Standaard Houten Geval te verhinderen
Levertijd: 50 werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 40 reeksen/maanden

Self-Cleaning Stainless Steel Horizontal Decanter Centrifuge for Continuous Sludge Dewatering

beschrijving
Andere naam: De modder centrifugeert Materiaal: Roestvrij staal
Functie: Vloeibare Soild Centrifge Operatie: CONTINU
Afscheidingsfactor: 2580 Sollicitatie: Slibontwatering
Markeren:

Self-Cleaning Horizontal Decanter Centrifuge

,

Stainless Steel Sludge Centrifuge

,

Continuous Operation Decanter Centrifuge

Self Cleaning Horizontal Decanter Centrifuge China Especially For Desulfurization Sludge



1. Product Introduction

This horizontal spiral discharge decanter centrifuge runs continuously, specially engineered for desulfurization sludge solid-liquid separation.
During operation, the bowl and conveyor rotate coaxially at high speed with a preset speed difference. Raw sludge is delivered via feeding pipeline into the inner cavity of spiral conveyor, then accelerated and fed into the rotating bowl. Driven by powerful centrifugal force, solid particles with higher density adhere to the bowl inner wall and form sediment layer. The spiral conveyor conveys settled solids toward the conical bowl end for slag discharging. Low-density liquid gathers into inner liquid ring and flows out steadily from the liquid overflow outlet.
The unit realizes uninterrupted feeding, separating, rinsing and discharging under full-speed running state. Featuring compact layout, steady running performance, wide application compatibility and large handling volume, the equipment also boasts easy daily upkeep. It fits suspension liquid separation with particle size over 0.005mm and solid concentration between 2% to 40%, extensively applied in chemical, light industry, pharmaceutical, food processing, environmental protection and other fields.



2. Operational Principle

Desulfurization sludge is pumped into the centrifuge through feeding port. High-speed bowl rotation generates strong centrifugal force, pushing heavy solid impurities toward bowl wall while liquid medium concentrates at the central area.
Thanks to the rotational speed gap between spiral rotor and bowl, accumulated solids are progressively transported to the small-diameter bowl end and expelled from slag outlet. Clarified liquid flows over the overflow opening at the large bowl end and gets drained out separately.



3. Model Selection Guidelines

Proper centrifuge model matching effectively resolves sludge separation difficulties, boosts operational efficiency, cuts operational expenditure and lowers operational risks. Key reference factors for equipment selection are listed below:


  1. Rotational Speed
    Rated rotating speed shall exceed 3000 rpm. Separation efficiency rises along with higher rotating speed, delivering superior separating outcome.
  2. Structural Material
    Materials differ greatly in wear resistance and anti-corrosion property. 316L stainless steel or duplex stainless steel serves as standard base material, and vulnerable wearing parts adopt ceramic composite material for durability.
  3. Differential Speed Regulation
    Precision of differential speed control directly influences service lifespan and maintenance cost. High-precision differential control adapts better to diverse sludge properties, which is the preferred configuration.
  4. Length-Diameter Ratio
    Larger length-diameter ratio contributes to higher treatment throughput and lower water content of discharged solid residue.
  5. Control System
    Automatic program control has become mainstream configuration for domestic and overseas centrifuges, supporting intelligent unattended operation.
  6. Rated Power
    Installed power correlates with energy consumption level, serving as an essential index for energy-saving assessment.
  7. Manufacturing Craft
    Sludge decanter centrifuge belongs to high-precision separation facility. Advanced machining technology guarantees stable performance, fewer breakdowns and reliable long-term running capacity.
